Air and moisture Separation Filter Louver assembly good ventilation for storage cabinet or warehouse



outdoor electric inverter/ converter/ substation/ telecom enclosure

Shipping container, outdoor energy storage equipment

Category: External installation series
Main Material: Aluminum Alloy
Color: Natural Anodizing
Blade Space(mm): 22
Humidity Decrease: 20%
Thickness of Filter net(mm): 18
Total Thickness(mm):85
Protection Grade: IP65
Effective ventilationrate:45%

Key word:

moisture seperate



storage cabinet


energy storage

Product Details



                Have you been those troubles!?


Outdoor new energy equipment

Energy storage container, electric coverter, electrical cabinet, EV charging station



   vent panel

Rain storm Sand storm Plague of insects Heavy fog and humidity

Operating in harsh condition

The flange of the unsuitble vent panel mounted into the vent of the device

That would be unsealing to the enclosure

It left the crack of the vent

Moisture condensation cause discharge or

corrosion to the machine

Serious accumulation of dust
inside the electrical equipment

Whole room is dusty and accelerate the aging and lifespan of the equipment in advance

     Our product can solve these problems!!                                           Model NO. HXQS-1GBAB

Customized filter function is suitable of protection in any harsh condition.

Fan filter/steel screen filter/ dust filter option

Main Material color size Flange back seal strip
Aluminum Alloy Natural Anodizing Customized Integrated molding
Rear end screen material

Total Thickness


 Protection level  Effective ventilation rate
Single stainless steel screen 53 IP55 40-45%



This series of louver filter is an integrated design of air-water separator and filter.

The front end is the air-water separator                       The back end is the filter

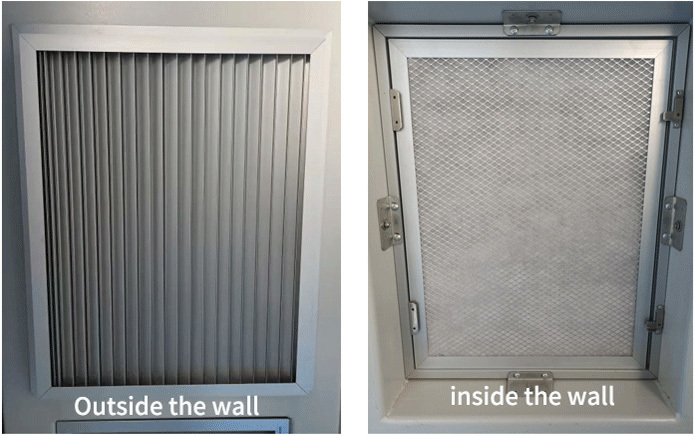

2 ways of installation

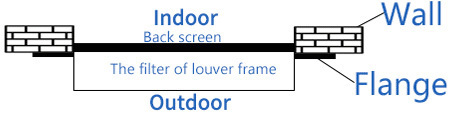

Embeded installation mode

Build-in installation mode

Remind: There will be 15mm gap between the bottom louverand wall for water discharging




It can make 3 types option according to your requirement below

To create a good protection performance and ventilation system

The rain water be block by the blades, and drain away from holes bottom

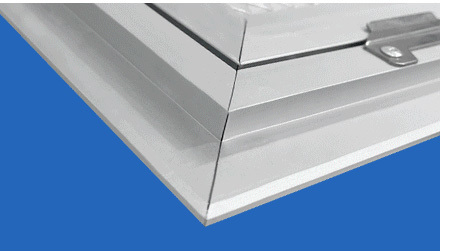

Aluminum alloy
reinforce and thickened

Aluminum alloy
reinforce and thickened

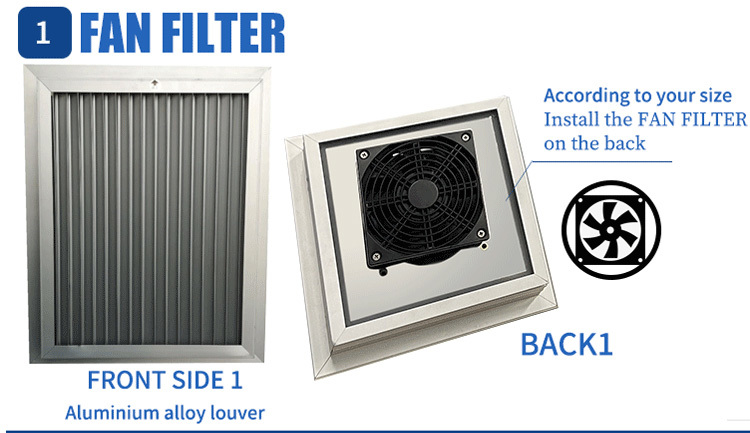

According to you size to install the fan filter for heat dissipation

Quality dust proof and insects blocked performance by the steel screen with cotton filter

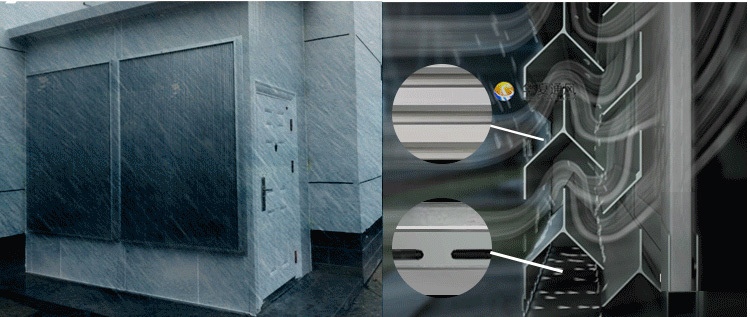

Vertical blades structure
excellent Water vapor
separation performance

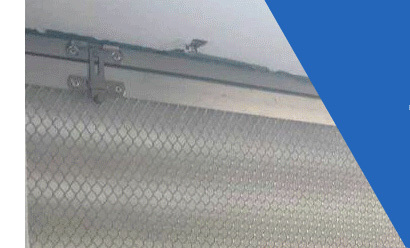

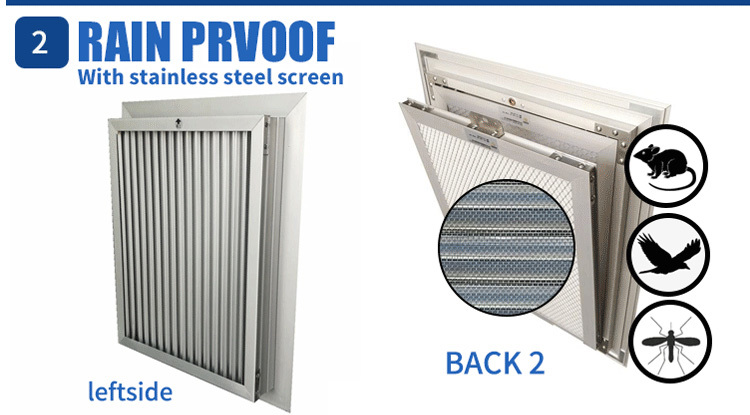

Install stainless steel screen or aluminum mesh for  block out objects

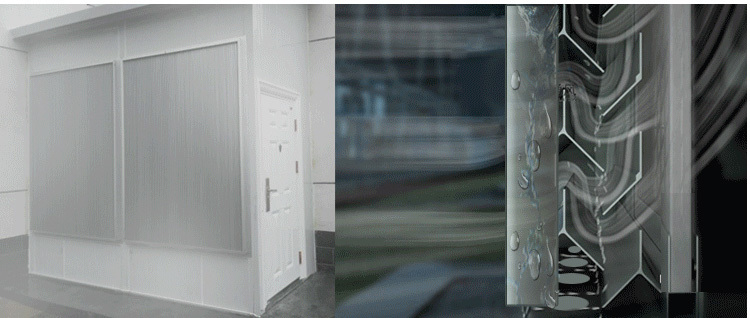

  Moisture hangs on the blades as water and flowing to the bottom, then drainge to   bottom drainage holes. the air is still unobstructed not damp

Mutiple bottom drainage holes
under the louver

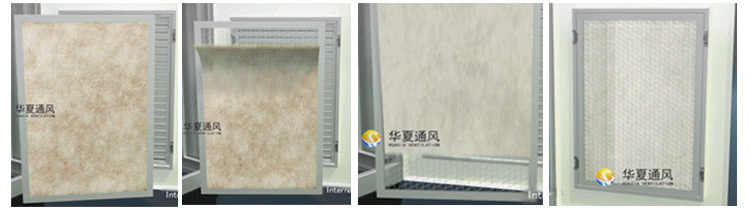

Add cotton layer has the dust prevention function

 After few months

  you can open the louver, take out the filter layer to flushing clean, and then install and       use it again and again

Match neatly with the
installation hole and will not
damage the wall



           Our product is suitable for those devices

1MKW-10MKW Energy storage container

Photovoltaic inverter grid connection device

Electrical distribution box Machine vent/ Electrical inverter Electrical converter/inverter/Grid infrastructure Storage building/electric equiment house Electric vehicle charging station


         We can customized to solve your problems

The pictures about what equipment do you use it to? We have the solution for you Provide you with free solution suggestions






OEM&ODM? MOQ? Price?

Product detail?



Any aidea

you can talk to us
