Oudoor power cabinet electrical enclosure ventilation waterproof dust filter Louver

HX02S-YT40-MT


Classification:

For Shipping container, outdoor energy storage equipment

For outdoor electric inverter/ converter/ substation/ telecom enclosure

Category: External maintenance series
Main Material: Aluminum Alloy
Color: Natural Anodizing
Blade Space(mm): 24
Flang Width(mm): 20
Thickness of Filter net(mm): 12
Total Thickness(mm):43
Protection Grade: IP55
Effective ventilationrate:40%

Key word:

Ventilation Filter Louver

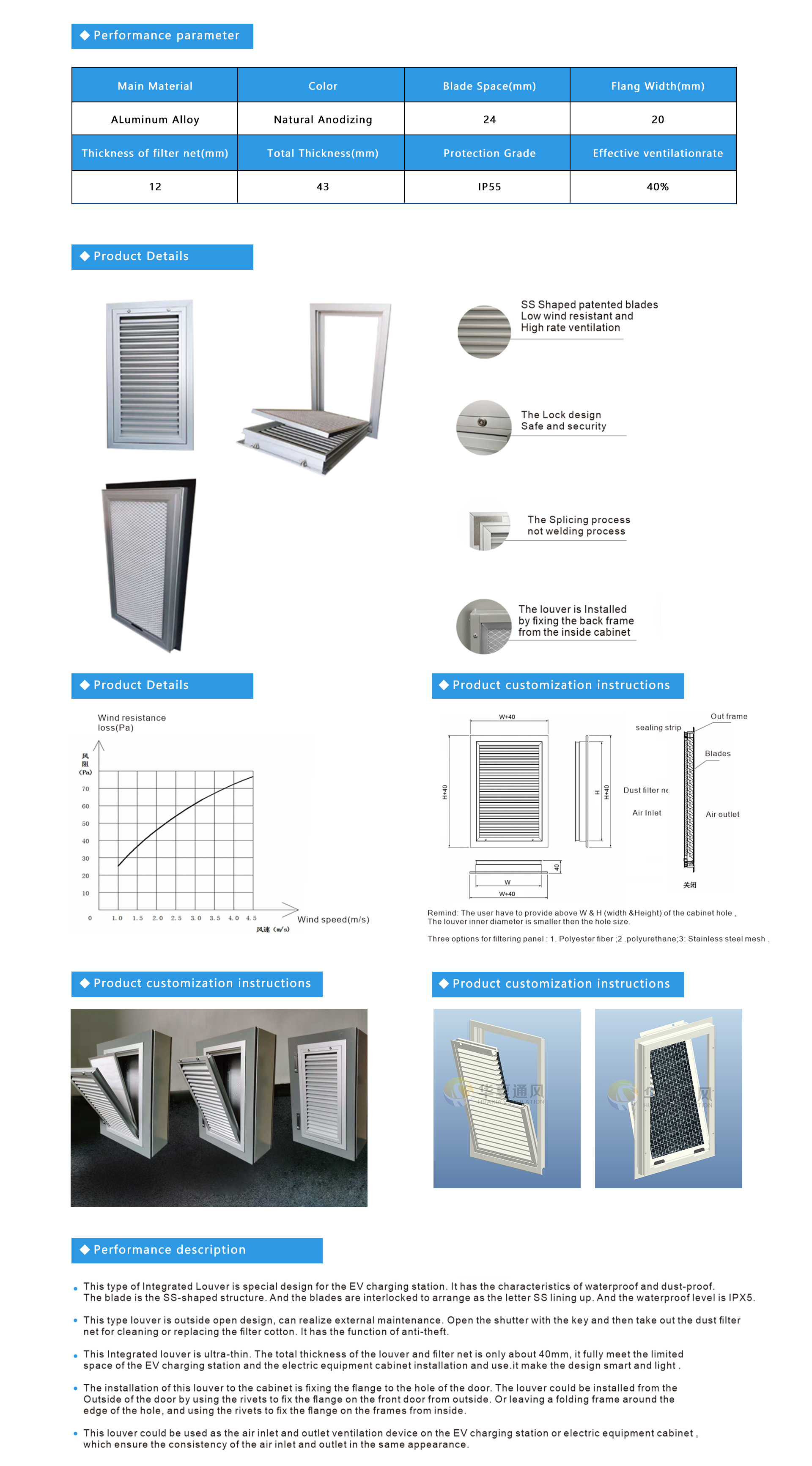

Product Details

WHAT PROBLEMS ARE WE FOCUSING ON RESEARCH AND DEVELOPMENT AND SOLVING ?





 Have you encountered any of the following issues with your project equipment

Whole room is dusty, serious accumulation of dust inside the electrical equipment accelerate the aging and life span of the equipment in advance

Also

The airflow of rainstorm take into the no protection equipment, resulting in ponding damage and power failure of the cabinet.  it brings the high maintenance costs. Moisture condensation cause discharge orcorrosion to the machine







Those power equipment will face those harsh condition influence below
Rainstorm Sand storm
Plague of insects Moisture foggy



The equipment is facing the trouble of being damaged and difficult to repair at any time







We can solve these problems

    Option1: Dust prevention in ventilation

Quality dust proof and insects blocked performance by the metal net with cotton filter

Equip with stainless steel or aluminum mesh for fine objects barrier

Equip with Polyurethane or Non-woven fabric cotton layer for dust filter





    Option2: Waterproof and drainage

The rain water be blocked by the vanes, and drain away from holes bottom

RAIN PROOF by the vanes structure design



The vanes sape design are doubles small S-shaped combination good rain block vane structure

Option 1: direct open external by key

Option 2: direct open external by latch design

Flange back integrated sealing strip can be good sealing stallation Waist shape drainage holes in below can be smooth drainage





External open type is easy maintenace, just direct open the louver,  take out the filter layer to flushing clean, and then install and use it again and again



    Product application demonstration

    Our product is suitable for those devices

Shipping container, all types ESS container, MWH ESS container

photovoltaic converter/inverter PCS

Photovoltaic inverter grid connection device



Also suitable for those devices below:

Warehouse/ voltage room Power conversion system cabinet
Industrial generator Feeder pillar/ telecom cabinet
Electric vehicle charger Box type substation





    How can we serve you

Contact us by e-mail, whatsapp or comment area of our website

To check out our contact information ( Please click)

Shipping container/ power device enclosure/ building constructure

Tell us the size of installation hole Length * width ↑↑↑

or you can send the pictures of your devices and application?

Talk to us your requirement

Tell us your protection level requirement ↓↓↓

IP53

for moderate rain

IP54

for heavy rain

IP55

for rainstorm

IP65

highest protection

We have the solution for you



Product design

Product drawing

Yes, we will produce the product for you after cooperation can be implemented
