Air vent special dust filter layer screen for every machenical equipment

HXT12-CC

Classification：

All louver products

The merit and demerit of these two type filter cotton 1 Polyurethane filter cotton(Black color), it can be washing and reuse, small wind resistance, but the filtering effect is ordinary, small amount of dust. 2 Non-woven fabric filter cotton(White color) good filtering effect, large amount of dust. But wind resistance is high, do not wash and reuse, the customer have to replace new one when the dust accumulates.

Key word：

dust filter

dust prevention

filter layer

dust filter

air filter layer

ventilation filter

Inquiry

Product Details

Have you been those troubles!?

air filter panel,unsuitable filter

Outdoor new energy equipment

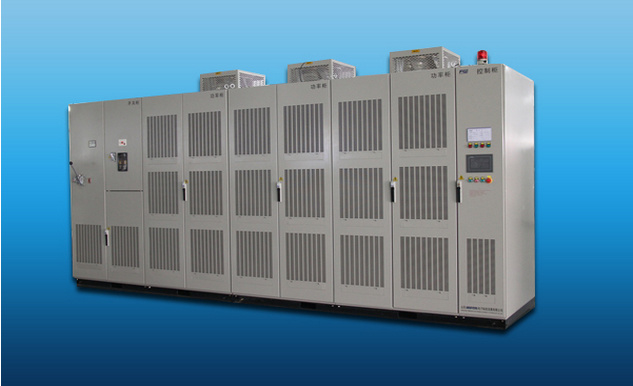

energy storage or electrical equipment, converter, telecom cabinets

Unsuitable

vent panel

Rain Storm	Sand Storm	Plague of Insects
Operating in harsh condition

The flange of the unsuitble vent panel mounted into the vent of the device

That would be unsealing to the enclosure

It left the crack of the vent

Moisture condensation cause discharge or

corrosion to the machine

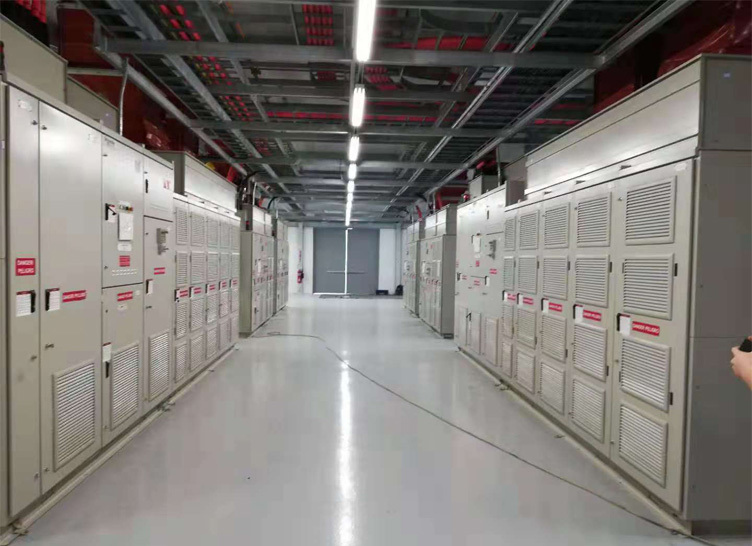

Serious accumulation of dust
inside the electrical equipment

Whole room is dusty and accelerate the aging and lifespan of the equipment in advance

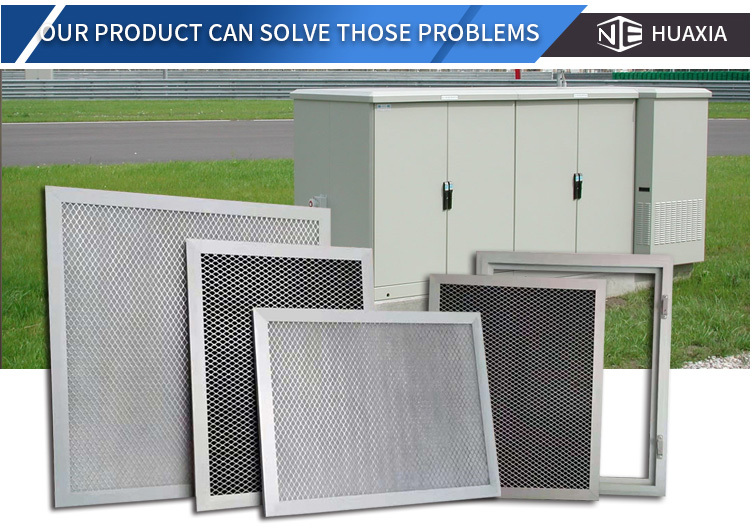

Our product can solve these problems!! Model NO. HX02S-YT40AB

Plate type dust filter Net

Customized filter function is suitable of protection in any harsh condition.

Polyurethane filter cotton/Non-woven fabric filter cotton

Polyurethane filter cotton
(Black color)

25PPI . 35PPI.45PPI.50PPI. 60PPI

Non-woven fabric filter cotton

(White color)

Primary level (G2,G3,G4)

Intermediate level(H5,H6)

The merit and demerit of these two type filter cotton

1 Polyurethane filter cotton(Black color), it can be washing and reuse, small wind resistance, but the filtering effect is ordinary, small amount of dust.

2 Non-woven fabric filter cotton(White color) good filtering effect, large amount of dust. But wind resistance is high, do not wash and reuse, the customer have to replace new one when the dust accumulates.

# Technical parameters #

Filter level	Test wind speed(m/s)	Rated wind(m3/h)	Initial resistance (pa)	Final resistance	Clogging capacity(g/m2)
G2	1.5	5400	18	250	400
G3	1.5	5400	20	250	450
G4	1.5	5400	25	250	520
G5	1.5	5400	30	450	500
G6	1.5	5400	36	450	500
G7	1.5	5400	42	450	500

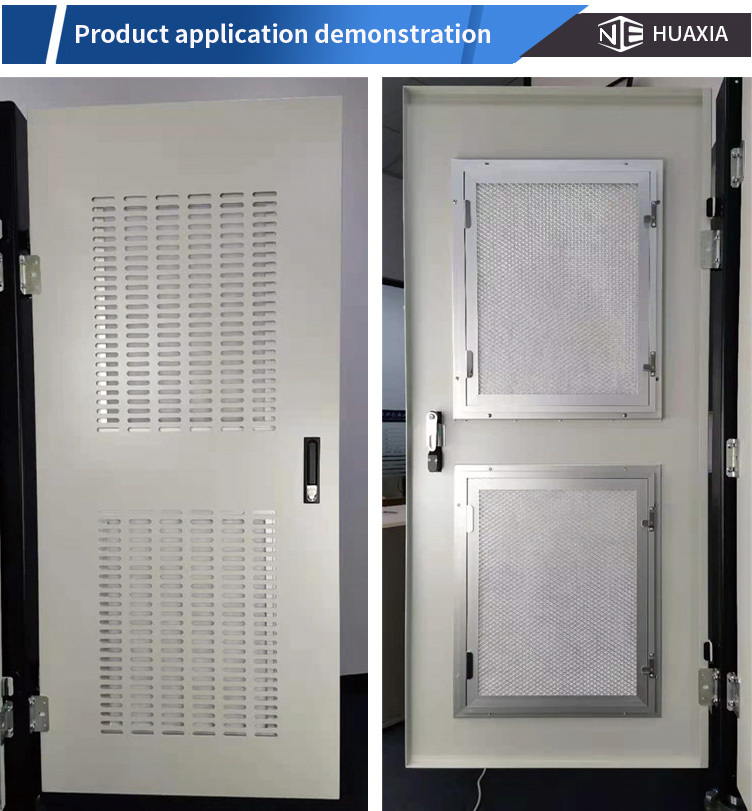

Front enclosure after installation

Behind enclosure after installation

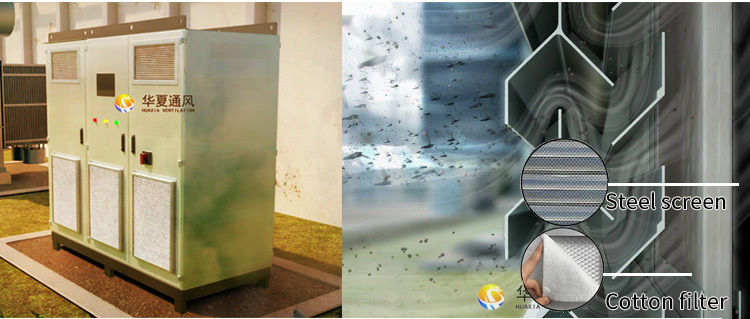

Product effects and operating principles

Quality dust proof and insects blocked performance by the steel screen with cotton filter

Air outlet can install with fan filter + our product for heat dissipation.

Good protective Air cooling system by inlet and outlet hole

After few months

you can open the louver, take out the filter layer to flushing clean, and then install and use it again and again

Our product is suitable for those devices

1MKW-10MKW Energy storage container

Photovoltaic inverter grid connection device


Electrical distribution box	Machine vent/ Electrical inverter	Electrical converter/inverter/Grid infrastructure	Storage building/electric equiment house	Electric vehicle charging station
