Internal mounting air vent panel for electrical equipment or EV charging station ventilation

HX1M-IT30AB


Classification:

For Electrical vehicle charging pile

Main Material: Aluminum Alloy
Color: Natural Anodizing
Blade Space(mm): 13
Thickness of Fins(mm): 0.8
Thickness of Filter net(mm): 12
Total Thickness(mm):30

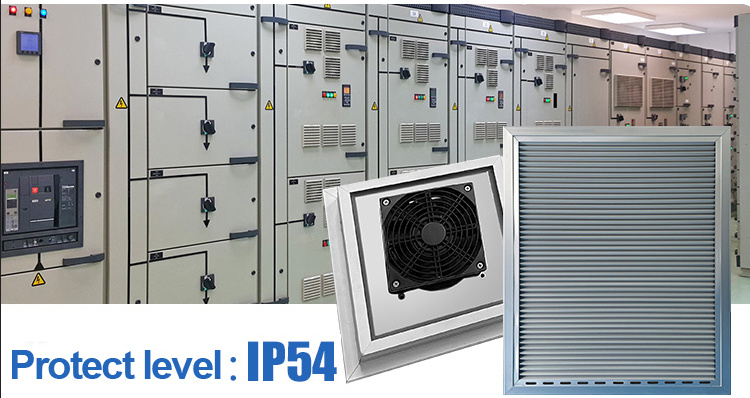

Protection Grade: IP54
Effective ventilationrate:35%

Key word:

internal setup

Product Details

WHAT PROBLEMS ARE WE FOCUSING ON RESEARCH AND DEVELOPMENT AND SOLVING ?







 Have you encountered any of the following issues with your project equipment

Whole room is dusty, serious accumulation of dust inside the electrical equipment accelerate the aging and life span of the equipment in advance

Also

The airflow of rainstorm take into the no protection equipment, resulting in ponding damage and power failure of the cabinet.  it brings the high maintenance costs. Moisture condensation cause discharge orcorrosion to the machine





Those power equipment will face those harsh condition influence below
Rainstorm Sand storm
Plague of insects Moisture foggy





The equipment is facing the trouble of being damaged and difficult to repair at any time





We can solve these problems

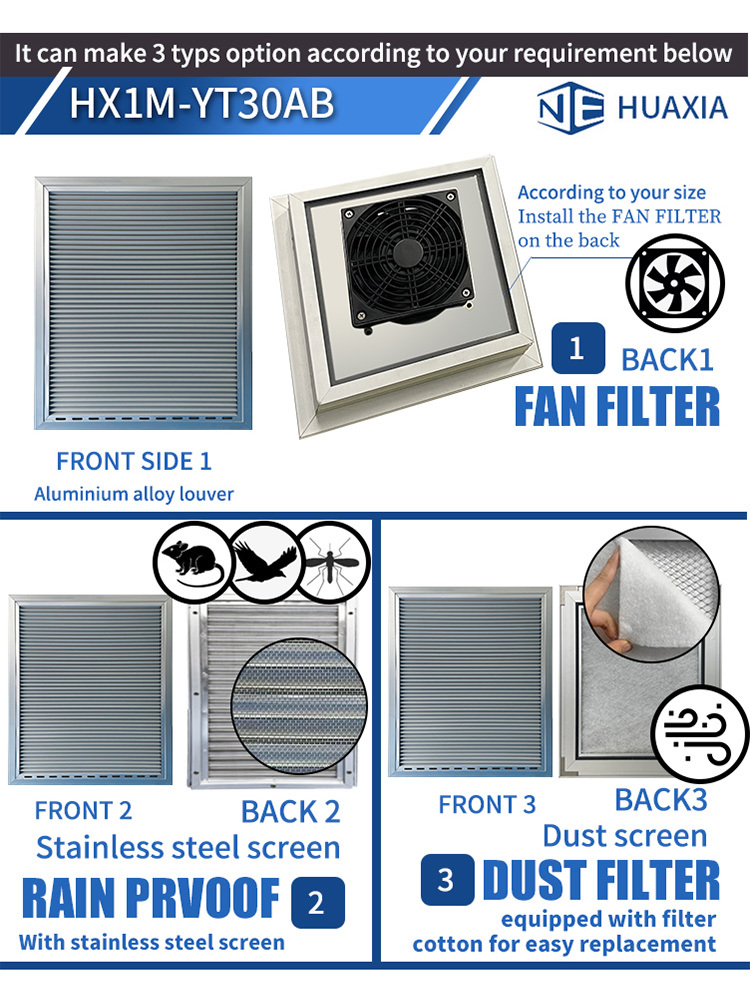

      Option 1: Dust prevention in ventilation

Quality dust proof and insects blocked performance by the metal net with cotton filter

Equip with stainless steel or aluminum mesh for fine objects barrier

Equip with Polyurethane or Non-woven fabric cotton layer for dust filter



      Option 2: Waterproof and drainage

The rain water be block by the vanes, and drain away from holes bottom

RAIN PROOF by the vanes structure design

The vanes shape deisgn is M-shaped good rain block performance

Waist shape drainage holes in below can be smooth drainage

Flange back integrated sealing strip can be good sealing stallation



Internal installation method is more novel

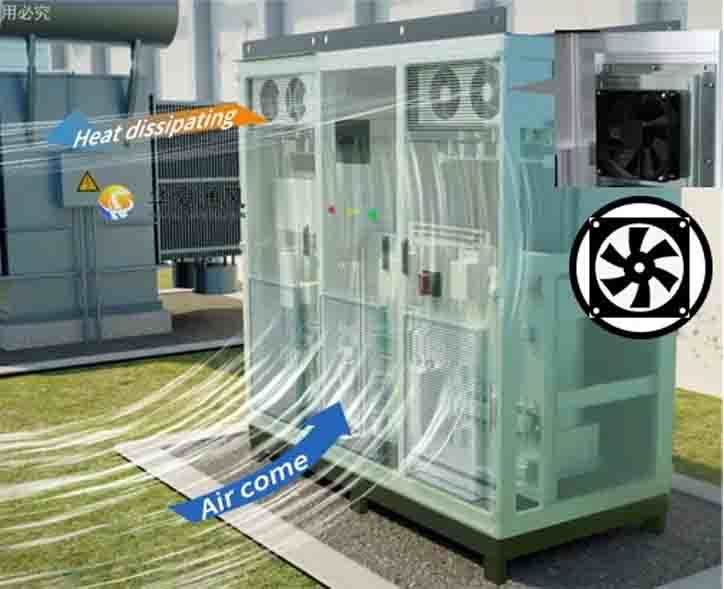

     Product application demonstration



      Our product is suitable for those devices

Shipping container, all types ESS container, MWH ESS container

photovoltaic converter/inverter PCS

Photovoltaic inverter grid connection device



Also suitable for those devices below:

Warehouse/ voltage room Power conversion system cabinet
Industrial generator Feeder pillar/ telecom cabinet



Electric vehicle charger Box type substation





       How can we serve you?

Contact us by e-mail, whatsapp or comment area of our website

To check out our contact information ( Please click)

Shipping container/ power device enclosure/ building constructure

Tell us the size of installation hole Length * width ↑↑↑

or you can send the pictures of your devices and application?



Talk to us your requirement

Tell us your protection level requirement ↓↓↓

IP53

for moderate rain

IP54

for heavy rain

IP55

for rainstorm

IP65

highest protection

We have the solution for you



Product design

Product drawing

Yes, we will produce the product for you after cooperation can be implemented



 AND NOW

Any idea please leave your message to us below the page

Tell us your size

We can customized for you

OEM&ODM? MOQ? Price? Sample?

Product detail? Catalog?
