Home

aluminum alloy vent panel filter hot air exhaust vent shutter internal Seamless installation suitable for ev charging station

HX02S-IT40

Classification：

outdoor electric inverter/ converter/ substation/ telecom enclosure

Electrical vehicle charging station

Category: IT Series
Main Material: Aluminum Alloy
Color: Natural Anodizing
Blade Space(mm): 24
Flange Width(mm): 20
Thickness of Filter net(mm): 12
Total Thickness(mm):40
Protection Grade: IP55
Effective ventilationrate:40%

Key word：

Ventilation Filter Louver

aluminum alloy

vent panel filter

vent shutter

EV charging station

hot air exhaust

Inquiry

Product Details

Have you been those troubles!?

Outdoor new energy equipment

Energy storage container, electric coverter, electrical cabinet, EV charging station

Unsuitable

vent panel

Rain Storm	Sand Storm	Plague of Insects
Operating in harsh condition

The flange of the unsuitble vent panel mounted into the vent of the device

That would be unsealing to the enclosure

It left the crack of the vent

Moisture condensation cause discharge or

corrosion to the machine

Serious accumulation of dust
inside the electrical equipment

Whole room is dusty and accelerate the aging and lifespan of the equipment in advance

Our product can solve these problems!! Model NO. HX11Z-IT30AB

Dust filter and fan filter can be applied indoor and outdoors, and equiped with drainage holes	Main Material	color	size	Flange width
	Aluminum Alloy	Natural Anodizing	Customized	15mm/edge
	Rear end screen material	Total Thickness (mm)	Protection level	Effective ventilation rate
	Single stainless steel screen	40	IP55/65	45%

It can makes 3 types option according to your requirement belew Product effect and operating principles

According to your size install the fan filter on the back

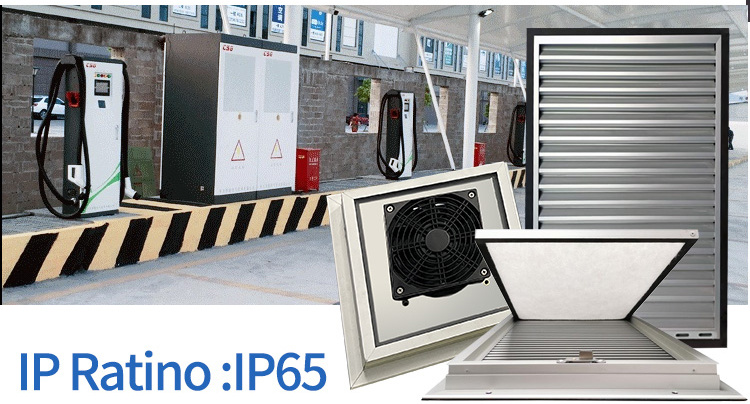

Air outlet can install with fan filter + our product for heat dissipation.

Good protective and high ventilation system by inlet and outlet hole

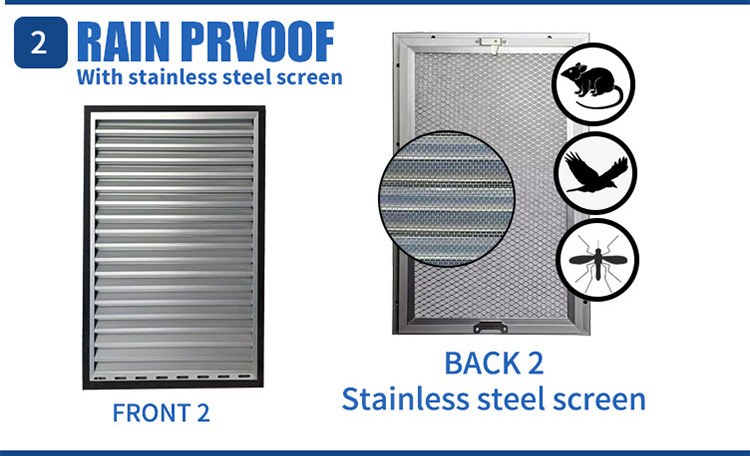

Stainless steel screen for block out small thing

The rain water be block by the blades, and drain away from holes bottom

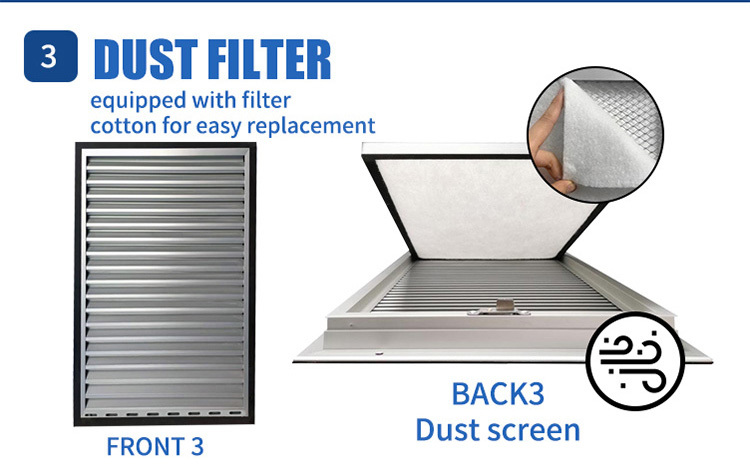

Cotton filter layer for dust prevention and easy replacement

Quality dust proof and insects blocked performance by the steel screen with cotton filter

After few months

you can open the louver, take out the filter layer to flushing clean, and then install and use it again and again

Our product is suitable for those devices


Electrical distribution box	Machine vent/ Electrical inverter	Electrical converter/inverter/Grid infrastructure	Storage building/electric equiment house	Electric vehicle charging station
