Electrical vehicle charging station special waterproof vent filter panel air cooling shutter



outdoor electric inverter/ converter/ substation/ telecom enclosure

Electrical vehicle charging station

Category: IT Series
Main Material: Aluminum Alloy
Color: Natural Anodizing
Blade Space(mm): 40
Flange Width(mm): 20
Thickness of Filter net(mm): 12
Total Thickness(mm):70
Protection Grade: IP55
Effective ventilationrate:60%

Key word:

Ventilation Filter Louver

Product Details

     Have you been those troubles!?


Outdoor new energy equipment

Energy storage container, electric coverter, electrical cabinet, EV charging station



   vent panel



Rain Storm Sand Storm Plague of Insects
Operating in harsh condition

The flange of the unsuitble vent panel mounted into the vent of the device


That would be unsealing to the enclosure

It left the crack of the vent

Moisture condensation cause discharge or

corrosion to the machine

Serious accumulation of dust
inside the electrical equipment

Whole room is dusty and accelerate the aging and lifespan of the equipment in advance

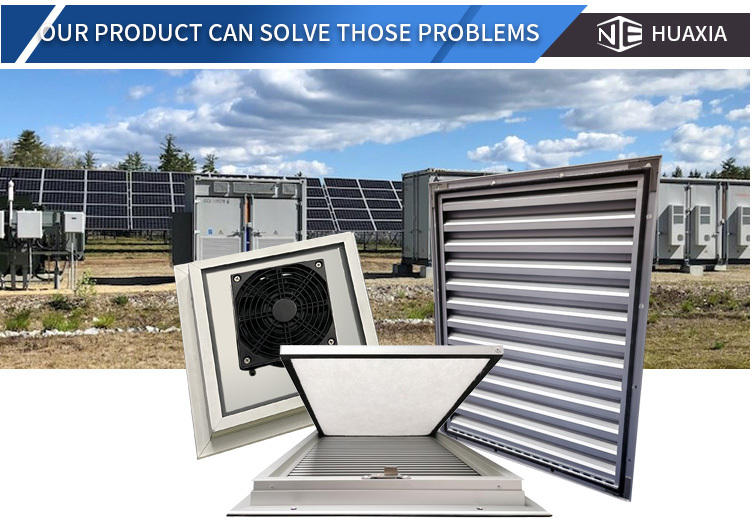

     Our product can solve these problems!!                                                              Model NO. HX02S-YT40AB

IP Level :IP55

Customized filter function is suitable of protection in any harsh condition. Fan filter/steel screen filter/ dust filter option

Main Material color size Flange width
Aluminum Alloy Natural Anodizing Customized 20mm/edge
Rear end screen material

Total Thickness


 Protection level  Effective ventilation rate
Single stainless steel screen 70 IP55 60%


It can makes 3 types option according to your requirement belew                Product effect and operating principles

According to your size install the fan filter on the back


Air outlet can install with fan filter + our product for heat dissipation.

Good protective and high ventilation system by inlet and outlet hole


Stainless steel screen for block out small thing


The rain water be block by the blades, and drain away from holes bottom

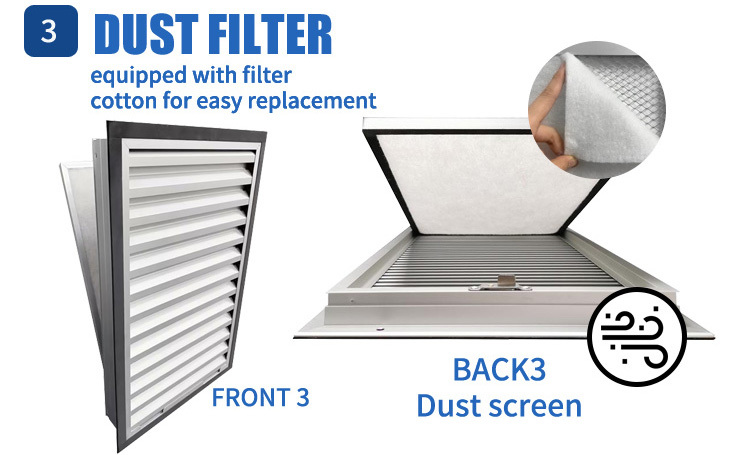

Cotton filter layer for dust prevention and easy replacement



Quality dust proof and insects blocked performance by the steel screen with cotton filter

After few months

you can open the louver, take out the filter layer to flushing clean, and then install and use it again and again



             Our product is suitable for those devices

1MKW-10MKW Energy storage container

Photovoltaic inverter grid connection device

Electrical distribution box Machine vent/ Electrical inverter Electrical converter/inverter/Grid infrastructure Storage building/electric equiment house Electric vehicle charging station



         We can customized to solve your problems

The pictures about what equipment do you use it to? We have the solution for you Provide you with free solution suggestions
