HUAXIA VENT modern simple style aluminum dust prevention screen filter integrated design ventilation louver

HX1Z-YT50AB


Classification:

For outdoor electric inverter/ converter/ substation/ telecom enclosure

For Shipping container, outdoor energy storage equipment

Category: External installation series
Main Material: Aluminum Alloy
Color: Natural Anodizing
Blade Space(mm): 24
Flange Width(mm): 20
Thickness of Filter net(mm): 12
Total Thickness(mm):50
Protection Grade: IP53
Effective ventilationrate:60%

Key word:

vent

rainproof

ventilationer louver

air filter

shipping container

ventilation lourve

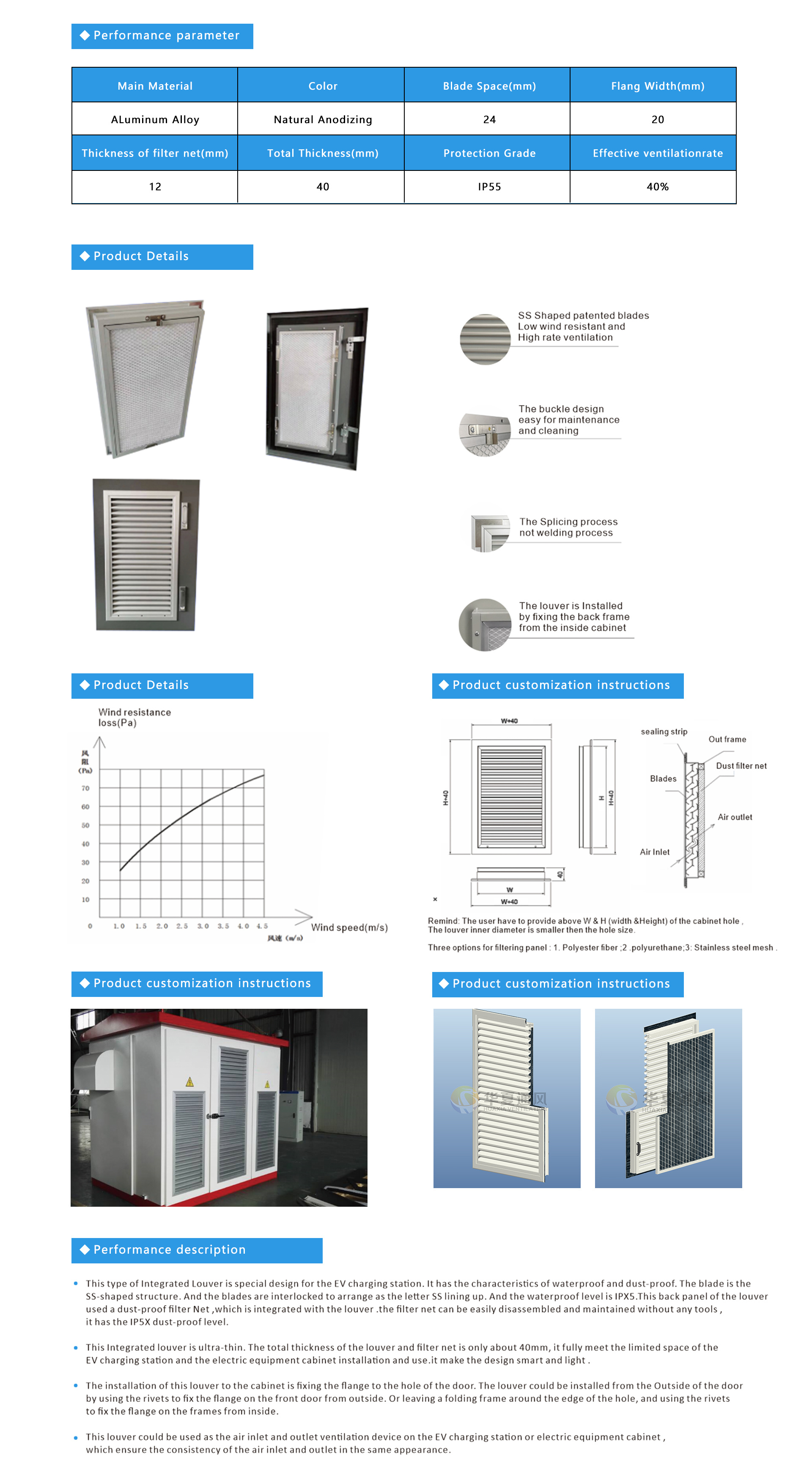

Product Details

WHAT PROBLEMS ARE WE FOCUSING ON

RESEARCH AND DEVELOPMENT AND SOLVING ?





       Have you encountered any of the following issues with your project equipment



Whole room is dusty, serious accumulation of dust inside the electrical equipment accelerate the aging and life span of the equipment in advance



Also

The airflow of rainstorm take into the no protection equipment, resulting in ponding damage and power failure of the cabinet.  it brings the high maintenance costs. Moisture condensation cause discharge orcorrosion to the machine







Those power equipment will face those harsh condition influence below

  Rainstorm Sand storm Plague of insects Moisture foggy













The equipment is facing the trouble of being damaged and difficult to repair at any time





We can solve these problems

          Option 1: Dust prevention in ventilation

Quality dust proof and insects blocked performance by the metal net with cotton filter



Equip with stainless steel or aluminum mesh for fine objects barrier Equip with Polyurethane or Non-woven fabric cotton screen layer for dust filter









          Option 2: Waterproof and drainage

The rain water be block by the vanes for light rain weather, and drain away from holes bottom

RAIN PROOF by the vanes structure design

The vanes shape design is Z-shaped light rain block by the vaines structure

Waist shape drainage holes in below can be smooth drainage

Flange back integrated sealing strip can be good sealing stallation

This product is suitable for light rain weather, please back to homepage to look more if you need the better waterproof level products







          Product application demonstration









          Our product is suitable for those devices



Shipping container, all types ESS container, MWH ESS container and photovoltaic converter/inver PCS







Photovoltaic inverter grid connection device





Also suitable for those devices below:

Warehouse/ voltage room Power conversion system cabinet Industrial generator





Feeder pillar/ telecom cabinet Electric vehicle charger Box type substation
